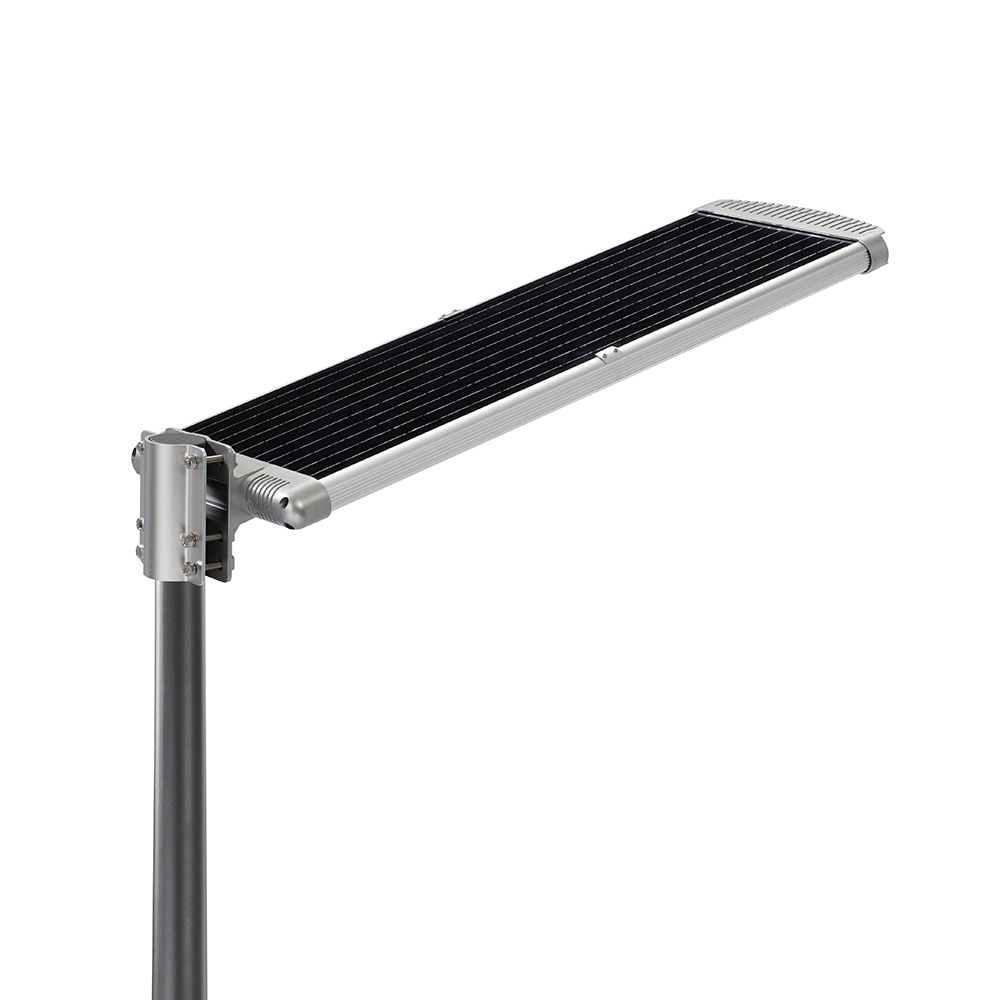

Features
Smart human sensor
Brighter during people come and darker after gone，extend the lighting time.
Lamps material of main ：aluminium alloy
The whole lamp's life is more than 5 years in normal use,3 years warranty period
IP65 grade, TVS lighting protection
Parameters
|
Type |
TL-PAD30W-K |
TL-PAD50W-K |
TL-PAD60W-K |
TL-PAD80W-K |
TL-PAD100W-K |
||
|
Solar panel（Monocrystalline Silicon） |
18V 50W |
18V 70W |
18V 80W |
18V 100W |
18V 130W |
||
|
Battery（LifePO4 Battery） |
12V 27AH |
12V 36AH |
12V 42AH |
12V 57AH |
12V 63AH |
||
|
LED max power |
12V30W |
12V50W |
12V60W |
12V80W |
12V100W |
||
|
led chip brand |
Bridgelux 3030 High Efficincy LED Chip,210LM/W |
||||||
|
lumen (LM) |
6300lm
|
10500lm
|
12600lm |
16800lm
|
21000LM |
||
|
Viewing Angle |
140° |
||||||
|
working Temperature |
'-25℃—+65℃ |
||||||
|
colour temperature |
2700K-6500K(customized) |
||||||
|
mounting height |
6-7M |
5-7M |
5-8M |
6-9M |
7-10M |
||
|
space between light |
20-24M |
23-31M |
23-31M |
23-34M |
25-30M |
||
|
with remote control or not |
yes / Night Sensor+Microwave Motion Sensor |
||||||
|
size |
820*385*180mm |
1190*385*180mm |
1190*385*180mm |
1630*385*55/585*125*320mm |
1950*385*55mm/585*125*320 |
||
|
Net weight |
19KG |
22KG |
23KG |
26KG |
29KG |
||
