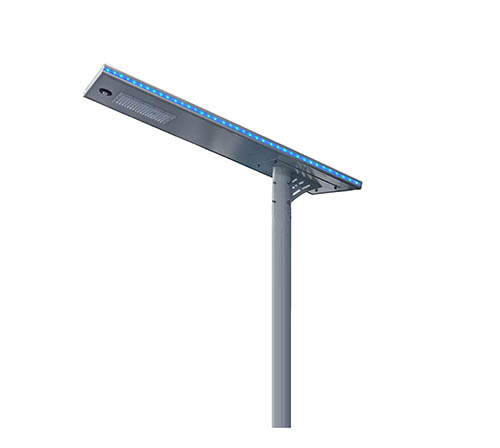

All in One Solar Street Light(TL-YT series)

  • All in One Solar Street Light(TL-YT series)

  • TL-YT Series

All in One Solar Street Light(TL-YT series)

Features

1.Simple and stylish appearance,0 electricity,free wiring.

2.Safe low voltage,no touch electricity,international safety standards.

3.Lithium battery,controller and light source are integrated,very simple installation.

4.Multi-core LED,extremely high efficient,more than 200LM/W for unit LED.

5.smart charge and discharge management,extend the lighting time,ensure lighting for 365 days.

6.Modular design,easy maintenance and replacement.

All in One Solar Street Light(TL-YT series)

Parameters

Mode

TL-YT-15

TL-YT-20

TL-YT-30

Lamp power

15W

20W

30W

Solar Panel

35W/6V

50W/6V

65W/6V

Lithium battery

160WH/3.2V

192WH/3.2V

288WH/3.2V

LED qty

140 pcs

Total lumens

2100-2250LM

2800-3000LM

4200-4500LM

LED chip brand

Bridgelux

Color temperature

3000-6500K

CRI

≥70Ra

Light control voltage

2V

Working temperature

(-) 20℃~+60℃

Lifespan

≥50000hours

Material

aluminum alloy, die-cast aluminum

Case diameter

60-76mm

Mounting height

4-6M

Installation distance

15-25M

Model

TL-YT-40

TL-YT-50

TL-YT-60

Lamp power

40W

50W

60W

Solar Panel

82W/18V

90W/18V

105W/18V

Lithium battery

384WH/12.8V

460WH/12.8V

540WH/12.8V

LED qty

140 pcs

Total lumens

5400-6000LM

7000-7500LM

8400-9000LM

LED chip brand

Bridgelux

Color temperature

3000-6500K

CRI

≥70Ra

Light control voltage

5V

Working temperature

(-) 20℃~+60℃

Lifespan

≥50000hours

Material

aluminum alloy, die-cast aluminum

Case diameter

60-76mm

Mounting height

6-8M

Installation distance

20-30M

Model

TL-YT-80

TL-YT-100

TL-YT-120

Lamp power

80W

100W

120W

Solar Panel

135W/36V

155W/36V

180W/36V

Lithium battery

768WH/25.6V

1024WH/25.6V

1280WH/25.6V

LED qty

280 pcs

Total lumens

11200-12000LM

14000-15000LM

16800-18000LM

LED chip brand

Bridgelux

Color temperature

3000-6500K

CRI

≥70Ra

Light control voltage

5V

Working temperature

(-) 20℃~+60℃

Lifespan

≥50000hours

Material

aluminum alloy, die-cast aluminum

Case diameter

70-80mm

Mounting height

8-12M

Installation distance

30-45M
