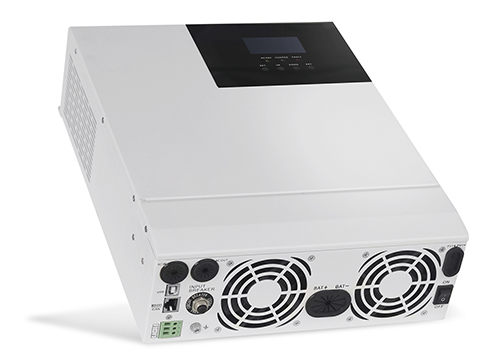

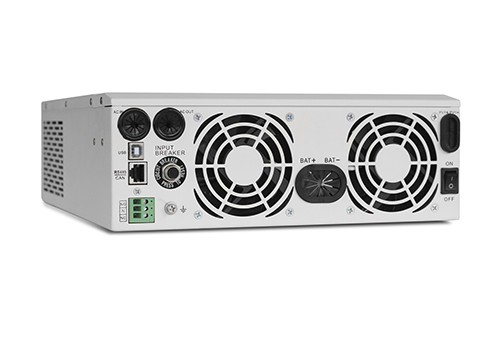

All-in-one Solar Hybrid Charge Inverter

Feature

1. Full digital voltage and current double closed loop control, advanced SPWM technology, output of pure sine wave.

2. Two output modes: mains bypass and inverter output; uninterrupted power supply.

3. Available in 4 charging modes: Only Solar, Mains Priority, Solar Priority and Mains & Solar hybrid charging.

4. Advanced MPPT technology with an efficiency of 99.9%.

5. Designed with a LCD screen and 3 LED indicators for dynamic display of system data and operating status.

6. ON/OFF rocker switch for AC output control.

7. Power saving mode available to reduce no-load loss.

8. Intelligent variable speed fan to efficiently dissipate heat and extend system life.

9. Lithium battery activation by PV solar or mains, allowing access of lead-acid battery and lithium battery.

10. 360 ° all-round protection with a number of protection functions.

11. Complete protections, including short circuit protection, over voltage and under voltage protection, overload protection, reverse protection, etc.

All-in-one Solar Hybrid Charge Inverter

 parameters

Models

HF4830S80

-145

HF4840S80

-145

HF4850S80

-145

HF4825U80

-145

HF4830U80

-145

HF4835U80

-145

AC mode

Rated input

voltage

220/230Vac 110/120Vac

Input voltage range

(170Vac~280Vac) ±2%

(90Vac-280Vac) ±2%



(90Vac~140Vac) ±2%

Frequency

50Hz/ 60Hz (Auto detection)

Frequency Range

47±0.3Hz ~ 55±0.3Hz (50Hz);

57±0.3Hz ~ 65±0.3Hz (60Hz);

Overload/short circuit protection



Circuit breaker

Efficiency

>95%

Conversion time (bypass and inverter)



10ms (typical)

AC reverse

protection

Available

Maximum

Bypass overload current



40A

Inverter mode

Output

voltage waveform



Pure sine wave

Rated output

power (VA)

3000

4000

5000

2500

3000

3500

Rated output

power (W)

3000

4000

5000

2500

3000

3500

Power factor

1

Rated output

voltage (Vac)

230Vac

120Vac

Output

voltage error

±5%

Output

frequency range (Hz)

50Hz ± 0.3Hz

60Hz ± 0.3Hz

Maximum

Efficiency

>92%

>91%



Overload protection

(102% < load <125%) ±10%: report error and turn off the output after 5 minutes;(125% < load < 150%) ± 10%: report error and turn off the output after 10 seconds;Load >150% ±10%: report error and turn off the output after 5 seconds;

(102% < load <110%) ±10%: report error and turn off the output after 5 minutes;

(110% < load < 125%) ± 10%: report error and turn off the output after 10 seconds;

(Load >125% ±10%): report error and turn off the output after 5 seconds;

Peak power

6000VA

8000VA

10000VA

4000VA

4500VA

5000VA



Loaded motor capability





2HP





3HP





4HP





1HP





2HP





2HP

Rated battery

input voltage

48V (Minimum starting voltage 44V)

Battery voltage range

Undervoltage alarm/shutdown voltage/overvoltage alarm /overvoltage recovery... settable on LCD screen)

Power saving

mode self- consumption



Load≤50W

AC charging

Battery type

Lead acid or lithium battery

Maximum

charge current(can be set)





0-60A





0-40A

Charge

current error

± 5Adc

Charge

voltage range

40 –58Vdc

40 –60Vdc

Short circuit

protection

Circuit breaker and blown fuse

Circuit breaker

specifications

40A

Overcharge

protection

Alarm and turn off charging after 1 minute

PV charging

Maximum PV

open circuit voltage



145Vdc

PV operating

voltage range

60-145Vdc

MPPT voltage

range

60-115Vdc

Battery

voltage range

40-60Vdc

Maximum

output power

4200W

PV charging

current range (can be set)



0-80A

Charging

short circuit protection



Blown fuse

Wiring

protection

Reverse polarity protection

Hybrid charging Max charger current specifications (AC charger+PV charger)

Max charger

current(can be set)



0-140A



0-120A

Certified specifications

Certification

CE(IEC62109-1/2)

EMC

certification level



EN61000, C2

Operating

temperature range



-15°C to 55°C

Storage

temperature range



-25°C ~ 60°C

Humidity

range

5% to 95% (Conformal coating protection)

Noise

≤60dB

Heat dissipation

Forced air cooling, variable speed of fan

Communication interface

USB/RS485(WiFi/GPRS)/Dry node control



Size (L*W*D)



426mm*322mm*124mm

Weight (kg)

10.8
